A growing share of US natural gas production is associated-dissolved natural gas (natural gas produced from oil wells), which is the result of increased crude oil production from low permeability, tight rock formations – Permian, Bakken, Eagle Ford, Niobrara, and Anadarko. In 2018, associated-dissolved natural gas production in these five major crude oil-producing regions was 12.0 billion ft3/d, or about 37% of total natural gas production in these regions and about 12% of total US natural gas production.
Associated-dissolved natural gas, also referred to as associated gas, is natural gas produced by oil wells. By contrast, non-associated gas is natural gas produced by natural gas wells. Some states define an oil well versus a natural gas well differently based on different gas-oil ratios (GOR). The US Energy Information Administration uses a gas-oil ratio of 6000 ft3 of natural gas to 1 bbl of oil (ft3/bbl) for each year’s total well production to determine whether a well is an oil well or natural gas well. If the GOR for a year of production is equal to or less than 6000 ft3/bbl, then the well is defined as an oil well, and any natural gas produced from this well is called associated gas. In addition, the various state pressure bases used to measure natural gas volumes have been converted to the federal pressure base of 14.73 lb/in.2 absolute and 60°F.
Associated gas contains natural gas plant liquids (NGPLs) such as ethane, propane, normal butane, isobutane, and natural gasoline. Associated gas is sometimes characterised as wet gas because it must be treated at natural gas processing plants to remove impurities and liquids before it can be marketed as natural gas. The increase in associated gas has led to record volumes of US NGPL production. NGPLs are used as feedstocks to produce plastics, fibres, and other products.

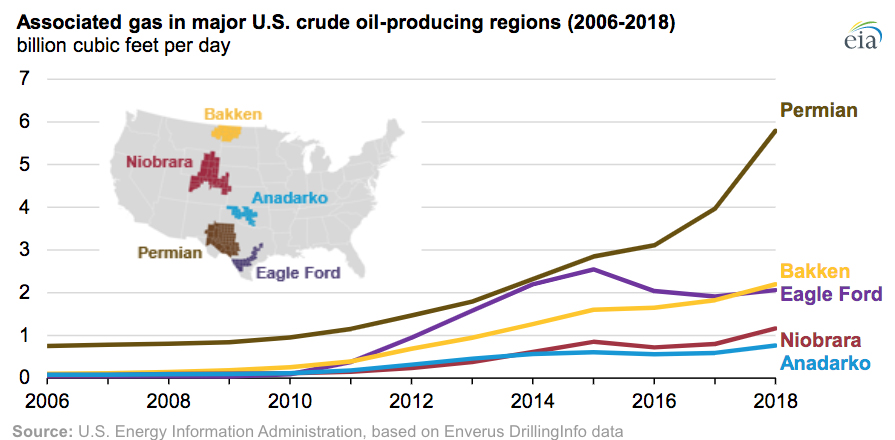

The Permian region, which spans parts of western Texas and eastern New Mexico, has the most associated gas production of the five crude oil-producing regions. The Permian region produced 5.8 billion ft3/d of associated gas in 2018, accounting for 51% of the Permian’s natural gas production total and surpassing non-associated gas production in the region for the first time. Record-high crude oil production from the Permian brings with it large volumes of associated gas. Greater natural gas production in the Permian region has led to additional natural gas takeaway pipeline capacity to move the natural gas out of the area to the market.
The Bakken formation, which is mostly in North Dakota, has the largest share of associated gas among the five major oil-producing regions. Associated gas accounts for 92% of the total natural gas production in the region. In 2018, the Bakken produced 2.2 billion ft3/d of associated gas, surpassing the Eagle Ford, which produced 2.1 billion ft3/d of associated gas. The Niobrara and Anadarko Basins both had increases in associated gas production in 2018, and their combined associated gas volume was 1.9 billion ft3/d.

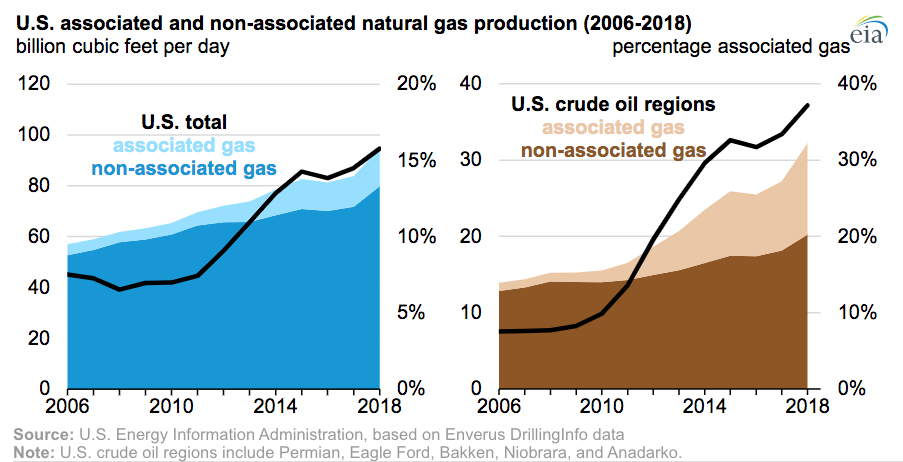

Associated natural gas production in the United States increased from 4.3 billion ft3/d in 2006 to 15.0 billion ft3/d in 2018. During this period, the associated gas share grew from about 8% to 16% of total natural gas production (measured as gross withdrawals). Associated gas in the US crude oil regions increased from 1.1 billion ft3/d to 12.0 billion ft3/d between 2006 and 2018. The share of associated gas in these regions grew from 8% to 37% of natural gas production in the major crude oil regions.
