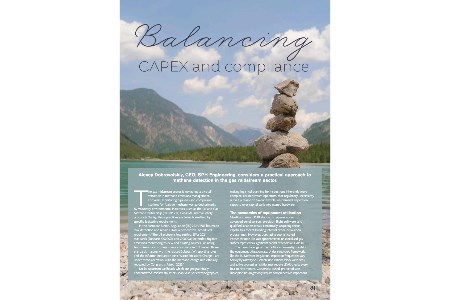

Balancing CAPEX and compliance

The gas midstream sector is navigating a pivotal transition in methane emissions management. For years, monitoring pipelines and compressor stations for fugitive methane was guided primarily by voluntary environmental initiatives, such as the Oil and Gas Methane Partnership (OGMP 2.0), alongside internal safety protocols. Today, these practices are being formalised by specific legislative requirements.

In the European Union, Regulation (EU) 2024/1787 has made leak detection and repair (LDAR) a prescriptive, scheduled requirement.¹ The US picture is less settled: EPA’s 2024 standards (Subparts OOOOb and OOOOc) extended fugitive-emissions monitoring to new and existing sources, including transmission and storage compressor stations.² However, those standards – along with the related Subpart W reporting rules and the Inflation Reduction Act’s Waste Emissions Charge – are under reconsideration, with the methane-charge rule officially repealed by Congress in March 2025.³

Unlike upstream wellheads which are geographically concentrated, midstream assets span vast, varied topographies, making logistical planning for inspections inherently more complex. For midstream operators, that regulatory uncertainty is itself a reason to favour flexible, on-demand inspection capacity over capital sunk into owned hardware.

The economics of equipment utilisation

Meeting current LDAR standards requires access to advanced aerial sensors, precision flight software, and qualified aviation crews. Historically, acquiring these capabilities meant building internal drone or aviation programmes. However, purchasing sophisticated instrumentation like laser spectrometers or specialised gas sniffers represents a significant capital expenditure (CAPEX).

The main challenge of the traditional ownership model is the equipment utilisation rate. Under structured frameworks like the EU Methane Regulation, inspection frequencies vary heavily by asset type. Compressor stations, block valve sites, and active processing facilities may require LDAR checks every four to nine months. Conversely, buried, protected steel linear pipelines might only require comprehensive inspections approximately every 24 months.¹ Purchasing expensive hardware and maintaining a roster of specialised pilots for compliance checks that only occur a few times a year is difficult to justify financially.

The true cost of ownership extends well beyond the initial purchase. It includes recurring software licensing, specialised pilot certification, hazardous environment training, and the logistical friction of maintaining complex hardware. The logistical burden of moving a proprietary drone fleet across state or national borders to meet staggered inspection schedules further diminishes the return on investment. Furthermore, drone and sensor technologies are characterised by rapid obsolescence cycles. A high-end detection payload purchased today may become outdated within a single regulatory compliance cycle, and the lithium-ion power systems required for enterprise operations degrade over time regardless of utilisation.

To address this financial inefficiency, many midstream operators are turning to an equipment rental or marketplace model. By utilising on-demand networks like the SPH Engineering Marketplace, pipeline operators can rent specific drone payloads – featuring self-calibrating sensors – or contract vetted local flight professionals only when an inspection is due.⁴ This approach converts fixed capital expenditures into predictable operational expenses (OPEX). Operators maintain access to current generation sensors and certified pilots when the LDAR schedule requires it, without carrying the financial weight of idle hardware throughout the rest of the year.

Pipeline surveys: the role of TDLAS

For linear midstream assets like gas pipeline routes, the main objective is rapid and reliable leak screening. The standard methodology for this task is Tunable Diode Laser Absorption Spectroscopy (TDLAS).⁵ TDLAS technology works by emitting an infrared laser beam tuned to a specific wavelength, typically 1.653 µm. When this beam intersects a gas plume, methane molecules absorb the energy at that exact wavelength. Because carbon dioxide does not absorb light at 1.653 µm, the sensor is naturally resistant to cross-sensitivity. This helps eliminate the false positive readings that can occur with older technologies when surveying over industrial exhaust zones.

Current payload systems, such as the Falcon Plus LR, measure the laser energy reflected from the ground (backscatter) and log the readings as column density (ppm·m). Under controlled laboratory conditions, these systems demonstrate a sensitivity threshold of approximately 500 ppm or 1 g/h at a distance of 20 - 40 m.⁶ However, field detection probability is never absolute. It depends heavily on variables including standoff distance, wind conditions, asset geometry, surface reflectivity, season, and leak intensity. Drone flight speed is also a critical factor. Typical operational speeds range from 1 - 7 m/s depending on the asset type and expected leak intensity. The physical reality remains: higher flight speeds inherently reduce the probability of detection, as the sensor has less time to integrate the absorption signal over a specific geographic coordinate.

For massive, long-haul transmission corridors spanning 500 - 1000 km, deploying manned helicopters equipped with heavy TDLAS units remains standard practice. However, midstream networks frequently consist of shorter regional segments or physically constrained corridors. For these routes, deploying a manned helicopter introduces complex flight path approvals and high operational rates, often ranging from US$3000 to US$6500/flight hour.

For these segments, drone mounted TDLAS offers a practical alternative. Using mission planning software like UgCS, a drone team can execute automated terrain following survey grids over a 200 km section in a matter of days.^{7, 8} The unmanned system provides the necessary laser detection capabilities but operates closer to the ground. This offers manoeuvrability while avoiding the overhead costs and logistical constraints of manned aviation. ?

Read the full article in the August 2026 issue of World Pipelines Magazine.
